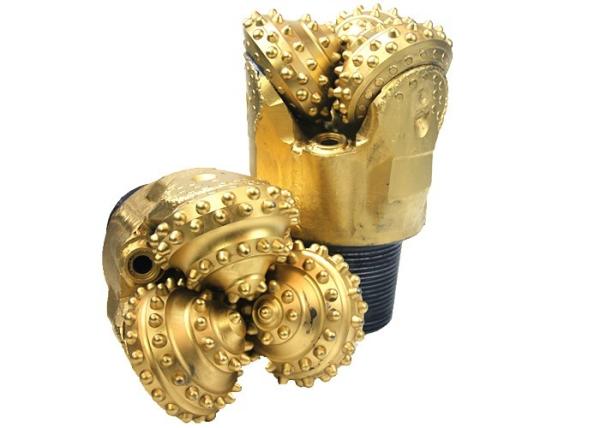

Mining Drill Bits Classified According To IADC545 12 1/4" High Performance Crushing Rock

Advantage:

1. Tianying rock roller bit feature an improved cutting structure, with wear and fracture resistant tungsten carbide inserts, designed to maximize penetration rates.
2. Bearings are refined and strengthened.
3. Rock drilling bits are carefully engineered to maximize productivity and lower total drilling costs.

What is Hard Rock Drill Bits

Hard Rock Drill Bit is cut rock by Tungsten Carbide teeth projecting from rolling cutters, which rotate on the drill-bit bearings. Inturn, the drill bit rotates at a high rate, and presses against the bottom hole with a high axial force.

The teeth of the rolling cutters roll over the bottom hole and, owing to the large stresses that develop in the area of contact between the teeth and the rock, cut the rock by crushing and chipping.

All bits the above are manufactured according to strict standards, set forth by the American Petroleum Institute (API).

And classified according to characteristics set forth by the International Association of Drilling Contractors (IADC).

As the hardness of therock increases, the rotation rate decreases and the axial force increases. Destroyed at the mine the rock is removed to the surface by air compressor, mud pump, or a combination of these methods.

How to read an IADC Code properly

Working theory of TCI tricone bit

The medium formation TCI tricone bits features aggressive chisel tungsten carbide inserts on the heel rows and inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard for mations. The HSN rubber O-ring provides adequate sealing for bearing durability.
Tricone bit is connected with the drill stem and rotates along with it, and drive cones to pressed on the rock. Each cone rotates round the axis of its leg and three cones simultaneously revolve around the bit center. The tungsten carbide inserts on the cone shell cause the formation to spall under the weight on bit and the impact load of cone rotating, the debris will be discharged out to hole by compression air.
The medium formation TCI tricone bits features aggressive chisel tungsten carbide inserts on the heel rows and inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard for mations. The HSN rubber O-ring provides adequate sealing for bearing durability.

    Professional. Duarable, Efficient, TIANYING TCI Tricone Bit!
    Hunan Tianying Drilling Machine Manufacturing Co., Ltd.is one state-appointed factory of mining tools especially for tricone bit. we are established in 1958 and located at Zhuzhou city of Hunan provice. one famous heavy industrial base of China. covering the land area of more than 800 acres with total asset of RMB130 Million and over 100 staffs.

    we have advanced full-equipped tricone bits and rockdrilling tillsmanufacturing workshops, high frequency welding workshop.heat treatment workship. mould equipment making workshop and the various departments of measurement. quality control. technology R&D center. the tatal main equipments amount to over 300 sets andthe annual production volume for tricone bits is 5000pcs for other rock drilling tools is over 1400000 pieces.

    we have partners all over the world like America. Europe.Australia.South Africa. UAE. Brazil and so on.
